S5016P-8T8N-EI 三层治理互换机（16 x 100M/1G/2.5G Base-T(PoE++90W), 8 x 10G Base-T(PoE++90W), 8 x 25G/10G SFP28，双电源，智能电扇

  • 1+1 热插拔电源？？？
  • 智能电扇，可凭据实时功率调整速度
  • PoE++ 90W
  • QinQ, BGP, MLAG
  • Ipv6

职能亮点:

  1. QinQ
  2. BGP
  3. OSPF
  4. MLAG
  5. IPv6
  6. VxLAN
  7. MPLS
  8. Layer 3 high-function

利用场景:

  1. 企业和校园网络
  2. 电信网络
  3. 数据中心网络
Get a quote

描述

产品简介

S5000系列互换机是选取国产新一代互换芯片VastLakes芯片平台构建的2.5G多速度互换机，支持1G/2.5G/10G/25G/40G等多种速度端口，占有丰硕三层个性，例如BGP、、EVPN、、IPv6、、VxLAN等，合用于企业网、、园区网、、SMB等利用场景。。

关键个性

*支持MLAG，跨设备链路聚合技术，实现设备级冗余，矫捷组网靠得住性强。。
*支持VxLAN和BGP和谈，构建数据中心场景下的EVPN利用。。
*支持互换机到互换机使用MACsec或AES-CMAC进行加密职能。。
*支持Precision Timing和谈。。
*丰硕的L2/L3个性，例如IPv6、、OSPF、、BGP、、PIM等等。。

杰出的治理个性

S5000系列互换机支持丰硕的治理接口，蕴含Console、、带内网口和带外网口、、USB口；；支持SNMPv1/v2/v3，支持CLI号令行，Web网管，TELNET及FTP配置，支持OAM，使设备治理更方便，并且支持SSH2.0、、SSL等加密方式，使得治理越发安全。。 此外，HOHUNET依附深厚的技术堆集和对园区及企业网络需要的深刻理解，推出大湖云维平台（DHCS），能够提高网络治理和守护效能，降低成本，提升网络治理的智能化水平，让网络越发急剧、、智能、、安全、、靠得住化，更好地服务于用户的需要。。

今年会·jinnianhui(中国)唯一官网

可视化Web界面

HOS支持可视化Web界面，可实现急剧配置，降低用户操作门槛。。

今年会·jinnianhui(中国)唯一官网



硬件规格

型号 S5016P-8T8N-EI

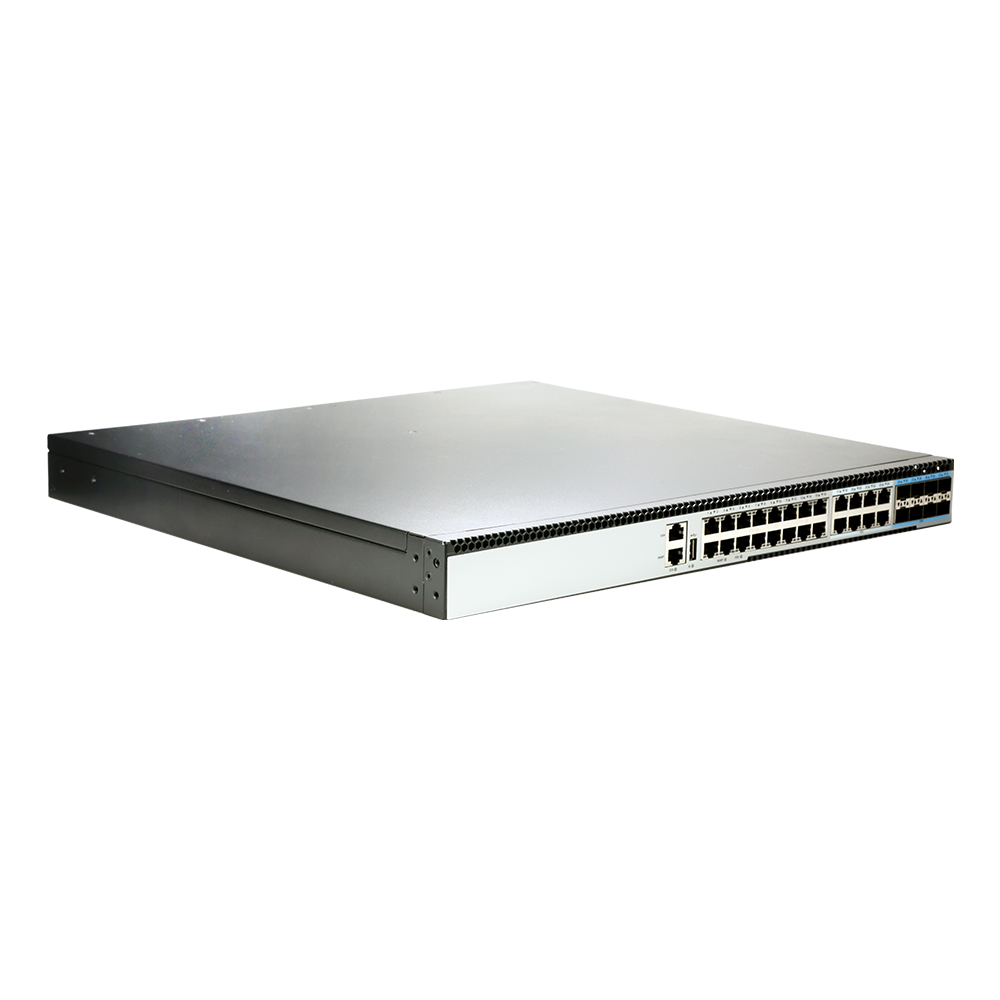

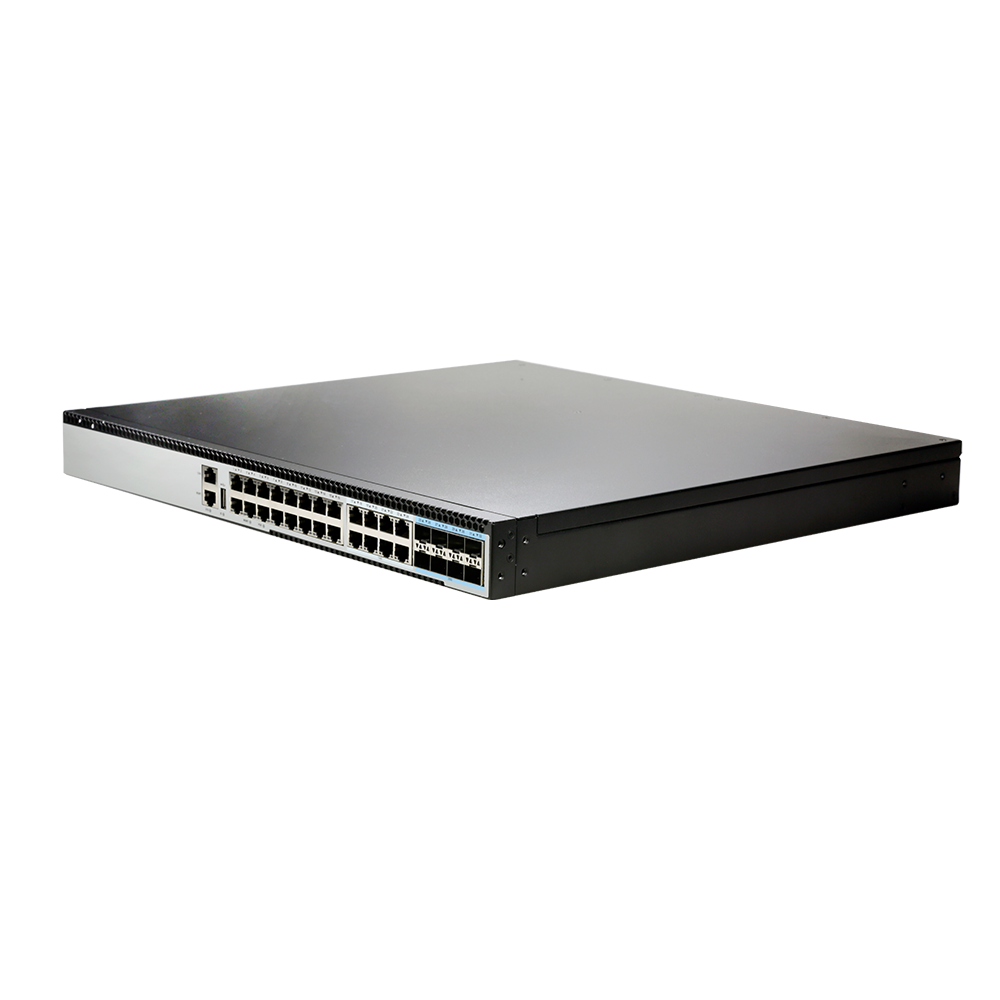

以太网口 16 x 100M/1G/2.5G Base-T(PoE++90W), 8 x 10G Base-T(PoE++90W), 8 x 25G/10G SFP28
治理口 串口：RJ45 to DB9
MGMT：1G RJ45
存储：USB

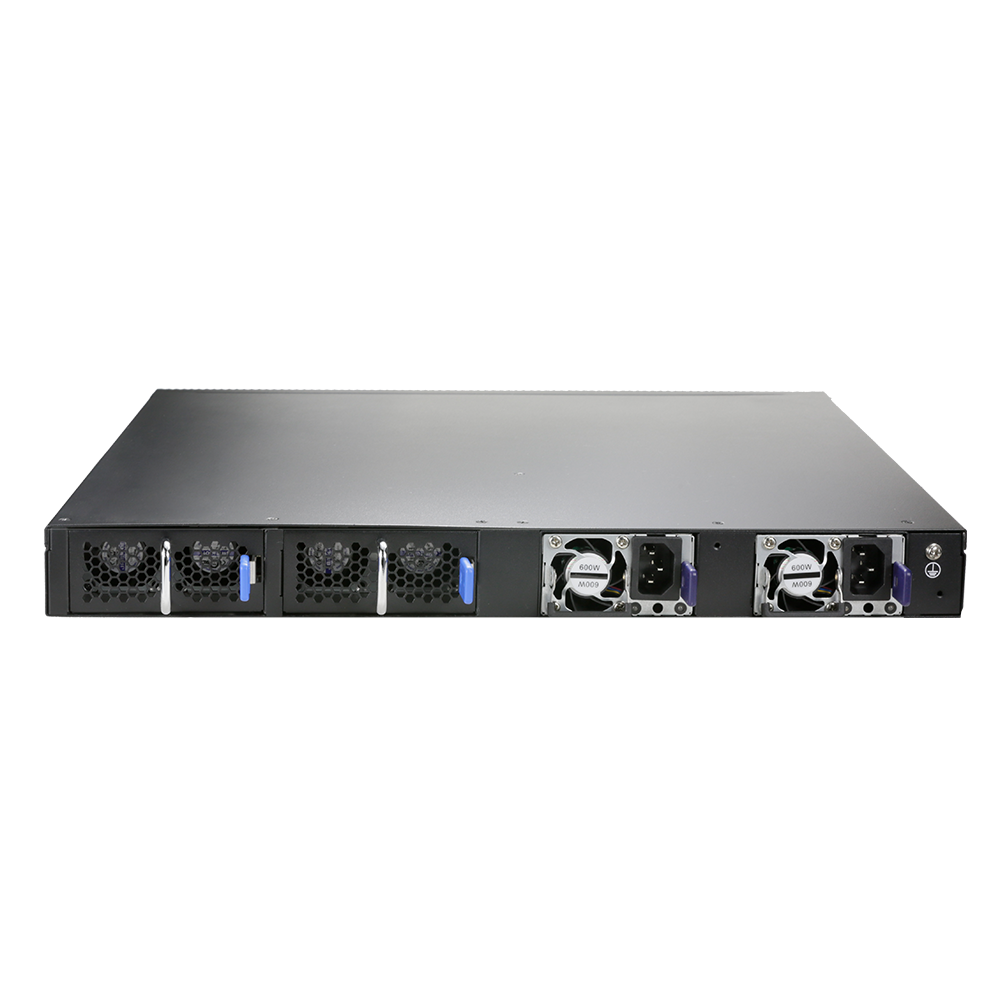

电源类型 2 x 600W CRPS 可插拔电源？？？椋–13）
电扇类型 2 x 可插拔电扇模组(前后风道)
Memory eMMc: 8GB

DRAM: 2GB
CPU 双核处置器, ARM A53
互换容量（双向） 640Gbps
包转发率（双向） 952.32Mbps
满载功耗 98.78W
典型功耗 TBD
噪声(dBA) TBD
最大风量?[CFM] 46.48
MTBF ≥90000H
工作海拔 ≤5000m
设备尺寸（宽×高×深） 442*44*420mm
运行温度 0?C to 40?C
芯片平台 VastLakes

软件规格

阅读小贴士：

EB-基础许可证 ?MS-高级许可证 ?MA-城域网许可证 ?ST-堆叠许可证
?-支持 ?X-不支持

类 子类 个性 描述 EB MS MA 注明
Ethernet basic features Ethernet interface Ethernet interface operating modes(full duplex, half duplex, and auto-negotiation) ? ? ?
Ethernet interface operating rates ? ? ?
Jumbo Frame ? ? ?
port-xconnect ? ? ?
Flow-control Flow-control tx/rx ? ? ?
storm-control Port based storm-control ? ? ?
VLAN based storm-control ? ? ?
Port-block Port-block(know/unknown unicast; know/unknown multicast/broadcast) ? ? ?
Port-isolate L2/L3/All ?Port-isolate ? ? ?
Uni-direction isolate ? ? ?
L2 Protocol Tunnel L2 Protocol Tunnel(support CFM/DOT1X/SLOW-PROTO/STP ? ? ?
Forward mode Store-and-forward ? ? ?
Cut-through ? ? ?
VLAN VLAN Access mode Access/Trunk ? ? ?
Default VLAN ? ? ?
VLAN Classification VLAN Classification(port based/mac based/IP based/protocol based) ? ? ?
QinQ Basic QinQ ? ? ?
Selective QinQ ? ? ?
VLAN Mapping(1:1 VLAN Translation) ? ? ?
VLAN Statistics VLAN Statistics ? ? ?
Private VLAN Private VLAN ? ? ?
Voice VLAN Voice VLAN ? ? ?
Guest VLAN Guest VLAN ? ? ?
MAC MAC Address Table Automatic learning and aging of MAC addresses ? ? ?
Hardware Learning ? ? ?
Static and dynamic ?MAC address entries ? ? ?
Blackhole MAC ? ? ?
MAC Flapping detect MAC Flapping detect ? ? ?
Port Bridge Port Bridge ? ? ?
LAG Link aggregation Static-LAG & LACP ? ? ?
LAG load balance(SLB) ? ? ?
LAG load balance(DLB) ? ? ?
LAG load balance(RR) ? ? ?
LAG Self-healing ? ? ?
Link aggregation weighting ? ? ?
Ethernet Ring protection features xSTP STP Spanning-Tree Protocol ? ? ?
RSTP Rapid Spanning-Tree Protocol ? ? ?
MSTP Multi-instance Spanning-Tree Protocol ? ? ?
Spanning-Tree Protocol Protection BPDU Filter/Guard ? ? ?
Root Guard ? ? ?
Loop Guard ? ? ?
Anti TC-BPDU attack ? ? ?
ERPS ERPS Single ERPS ring ? ? ?
tangent ERPS rings ? ? ?
intersecting ERPS rings ? ? ?
compatible with RRPP ? ? ?
Loop back Detect Loop back Detect Loop back detection ? ? ?
Layer2 Multicast Layer2 Multicast IGMP Snooping IGMPv1/v2/v3 Snooping ? ? ?
Fast leave ? ? ?
Static IGMP snooping group ? ? ?
MVR MVR(Multicast VLAN Registration) ? ? ?
IPv4 Forwarding ARP ARP Static and dynamic ARP entries ? ? ?
Aging of ARP entries ? ? ?
Gratuitous ARP ? ? ?
ARP proxy basic ARP-Proxy ? ? ?
local ARP-Proxy ? ? ?
IPv4 Unicast Routing IPv4 Static Routes IPv4 Static Routes ? ? ?
Black hole Routes ? ? ?
co-work with IP SLA ? ? ?
VRF(Virtual Routing and Forwarding) ? ? ?
uRPF check ? ? ?
RIP RIPv1/v2 ? ? ?
OSPFv2 OSPFv2 X ? ?
IS-IS IS-IS X ? ?
BGP IBGP X ? ?
EBGP X ? ?
Route policy Route-map ? ? ?
IPv4 prefix-list ? ? ?
PBR PBR(Policy-based Routing) ? ? ?
ICMP ICMP redirect ? ? ?
ICMP unreachable ? ? ?
ECMP ECMP(SLB) ? ? ?
ECMP(DLB) ? ? ?
ECMP(RR) ? ? ?
ECMP Self-healing ? ? ?
IPv4 Multicast Routing IGMP IGMPv1/v2/v3 ? ? ?
IGMP-Proxy ? ? ?
IGMP SSM Mapping ? ? ?
PIM PIM-SM X ? ?
PIM-DM X ? ?
IPv6 Forwarding IPv6 Basic Protocol ICMPv6 ICMPv6 X ? ?
NDP NDP X ? ?
IPv6 Unicast Routing IPv6 Static Routes IPv6 Static Routes X ? ?
RIPng RIPng X ? ?
OSPFv3 OSPFv3 X ? ?
IS-IS IS-IS X ? ?
BGP4+ BGP4+ X ? ?
IPv6 Multicast Routing MLD v1/v2 MLD v1/v2 X ? ?
MLD v1/v2 Snooping MLD v1/v2 Snooping X ? ?
MVR6 MVR6 X ? ?
PIM-SM v6 PIM-SM v6 X ? ?
IP Tunnel IPv6 over IPv4 Tunnel IPv6 over IPv4 Tunnel X ? ?
6to4 Tunnel 6to4 Tunnel X ? ?
ISATAP Tunnel ISATAP Tunnel X ? ?
IPv6 Service DHCPv6 DHCPv6 Relay X ? ?
DHCPv6 Snooping X ? ?
IPv6 Prefix List IPv6 Prefix-list X ? ?
Device reliability features BFD BFD BFD for Static route X ? ?
BFD for OSPFv2 X ? ?
BFD for VRRP/Track X ? ?
BFD for PBR X ? ?
VRRP VRRP VRRP ? ? ?
Track for VRRP ? ? ?
Smart Link Smart Link multi-instance ? ? ?
load balance ? ? ?
Multi-Link ? ? ?
Monitor-link ? ? ?
MLAG MLAG MLAG basic ? ? ?
MLAG orphan Port ? ? ?
Stacking Stacking Maximum number of stacked devices: 8
Stack port: Any port or AGG		 ? ? ? 必要ST license支持
ethernet OAM EFM EFM (802.3ah) Auto detection X ? ?
Network fault detection X ? ?
Network fault handle X ? ?
remote loop back X ? ?
CFM CFM (802.1ag) Hardware CCM detect X ? ?
MAC Ping X ? ?
MAC Trace X ? ?
Y.1731 Y.1731 Loss measure(LM) X ? ? BigFlow和SerdesX平台不支持
Latency and Jitter measure(DM) X ? ?
PoE features PoE System Power management Power supply on-spot detection ? ? ?
Power supply capability detection ? ? ?
Power capability auto configuration (PSE) ? ? ?
Power Supply Management Legacy PD detection ? ? ?
PD max power management ? ? ?
PD priority management ? ? ?
Power Supply Task Plan management(Not ready) ? ? ?
PD Mandatory power supply ? ? ?
operations management PSE log ? ? ?
PSE Chipset temperature inquire ? ? ?
PSE firmware update ? ? ?
QoS features QoS Traffic classification Traffic classification based on COS/DSCP (simple classification) ? ? ?
Traffic classification based on ACL ( complex classification) ? ? ?
Traffic classification based on inner header of the tunnel packets ? ? ?
Traffic behaviors Queue scheduling ? ? ?
Remark the priority fields(COS/DSCP) of the packet based on ACL ? ? ?
Remark the priority fields(COS/DSCP) of the packet based on Table Map ? ? ?
Flow redirection ? ? ?
Flow mirror ? ? ?
Traffic policing Traffic policing based on direction(in/out) ?of Port ? ? ?
Traffic policing based on direction(in/out) of VLAN ? ? ?
Traffic policing based on direction(in/out) of flow ? ? ?
Traffic policing based on direction(in/out) of aggregated flow ? ? ?
Traffic shaping Queue based traffic shaping ? ? ?
Port based traffic shaping ? ? ?
Congestion management SP(Strict Priority)scheduling ? ? ?
WDRR(Weighted Deficit Round Robin)scheduling ? ? ? SerdesX平台不支持
SP + WDRR mixed scheduling ? ? ? SerdesX平台不支持
Congestion avoidance TD(Tail Drop) ? ? ?
WRED(Weighted Random Early Detection) ? ? ?
Traffic statistics Packet counts and bytes statistics based on traffic classification ? ? ?
Packet counts and bytes statistics based on the color after traffic policing ? ? ?
Forwarded and discarded packet counts and bytes statistics ? ? ?
ECN (Explicit congestion ECN tags based on Tail Drop ? ? ? SerdesX平台不支持
ECN tags based on WRED ? ? ?
Data Center VARP Virtual gateway VARP(Virtual-ARP) ? ? ?
VARP subnet ? ? ?
Tunnel VxLAN Manual configure VxLAN tunnel ? ? ?
VxLAN distributed gateway ? ? ?
VxLAN active-active access ? ? ?
Interconnect across Data Centers based on VxLAN ? ? ?
Edit DSCP in VxLan outer header ? ? ?
BGP EVPN ? ? ?
Support to enable/disable overlay split horizon per-VNI ? ? ?
GRE Tunnel GRE Tunnel ? ? ?
NVGRE Tunnel NVGRE Tunnel ? ? ?
GENEVE Tunnel GENEVE Tunnel ? ? ?
DCB DCBX LLDP support DCBX TLV ? ? ?
PFC PFC ? ? ?
Metro Feature MPLS LDP LDP X X ?
MPLS Forwarding MPLS Forwarding X X ?
VPWS VPWS (L2VPN) X X ?
VPLS VPLS (L2VPN) X X ?
L3VPN L3VPN X X ?
MPLS OAM MPLS OAM X X ?
MPLS Stats MPLS Stats X X ?
ACL ACL X X ?
Qos Qos X X ?
Security and management System Security SSH SSHv1/v2 ? ? ?
RSA Key generation ? ? ?
RADIUS RADIUS ? ? ?
TACAS+ TACAS+ ? ? ?
AAA Authentication ? ? ?
Authorization ? ? ?
Accounting ? ? ?
Dot1x Port based dot1x ? ? ?
MAC based dot1x ? ? ?
Guest VLAN ? ? ?
ACL MAC/IP ACL ? ? ?
Basic Mode ACL ? ? ?
Port-group ACL ? ? ?
VLAN-group ACL ? ? ?
IPv6 ACL ? ? ?
ACL UDF ? ? ?
Time Range ? ? ?
ARP Inspection ARP Inspection ? ? ?
IP Source Guard IP Source Guard ? ? ?
Port Security Limitation on MAC address learning on interface ? ? ?
VLAN Security Limitation on MAC address learning on VLAN ? ? ?
Control Plane Policy (COPP) Black list/wihte list ? ? ?
Rate limit ? ? ?
CPU Traffic Limit CPU Traffic Limit ? ? ?
Prevent DDOS attack Prevent DDOS attack (ICMP Flood/Smurf/Fraggle/LAND/SYN Flood) ? ? ?
Login filter Telnet/SSH ACL filtering ? ? ?
Telnet/SSH IPv6 ACL filtering ? ? ?
MAC Security MacSec(802.1AE) ? ? ? BigFlow平台不支持
Link-Flapping detection Link-Flapping detection ? ? ?
Network Management DHCP DHCP Server ? ? ?
DHCP Relay ? ? ?
DHCP Snooping ? ? ?
DHCP Client ? ? ?
DHCP Option82 ? ? ?
DHCP Option252 ? ? ?
RMON RMON ? ? ?
sFlow sFlow v4/v5 ? ? ?
IP SLA IP SLA ? ? ?
IPFIX IPFIX ? ? ?
EFD Elephant Flow Detection ? ? ? BigFlow平台不支持
NTP NTP(Network Time Protocol) ? ? ?
PTP（IEEE 1588） TC（Support P2P/E2E、、Ethernet/Udp Transport） ? ? ?
BC/OC(Support OneStep/TwoStep、、Request-response/Peer-delay Ethernet/Udp Transport) ? ? ?
Err-disable Err-disable detection and recovery ? ? ?
DNS Static DNS Client ? ? ?
LLDP LLDP ? ? ?
Terminal Services Command Line Interface Configurations through CLI (Command Line Interface) ? ? ?
Help information Banner configuration ? ? ?
Help information in English ? ? ?
Terminal service Vty Terminal service ? ? ?
Console Terminal service ? ? ?
Management interface In-band management interface and configuration ? ? ?
Out-band management interface and configuration ? ? ?
Configuration and maintenance Configuration Management SNMP Network management based on SNMPv1/v2c/v3 ? ? ?
Public and private MIB ? ? ?
Public and private Trap ? ? ?
WEB Configuration and management based on WEB UI ? ? ?
Cloud Management Automatic device connection management ? ? ? ?Cloud Management必要与 DHCS 云治理系统共同使用;DHCS 能够部署在公共云上或私有环境中
Zero-configuration deployment ? ? ?
Automatic network topology ? ? ?
Network monitoring and alarm notification ? ? ?
Configuration and one-click rollback ? ? ?
Cross-network tunneling connection to network device(web/ssh/telnet) ? ? ?
Scheduled tasks deployment ? ? ?
RPC-API Configuration and management based on RPC-API ? ? ?
Smart Config Smart Config(Automatically configuration when system start) ? ? ?
system profile configuration change the system specifications by choose different STM Profiles ? ? ?
Restore factory default configuration Restore factory default configuration ? ? ?
File System File system File system(support directory and file management) ? ? ?
Upload and download Upload and download files through FTP or TFTP ? ? ?
Upload and download files through Xmodem ? ? ?
Debugging And Maintenance Debug per-module Debug features ? ? ?
ICMP Debug ? ? ?
BHM Software process monitor: BHM(Beat Heart Monitor) ? ? ?
Hardware Watch Dog ? ? ?
Log & alarm CPU usage display and ?alarm ? ? ?
Memory ?usage display and ?alarm ? ? ?
Device temperature, PSU, FAN, status display and alarm ? ? ?
User operation logs ? ? ?
Management of logs, alarms, and debugging information ? ? ?
VCT VCT(Virtual Cable Test) ? ? ?
system diagnostics Detailed Diagnostic-information collection ? ? ?
Reboot Manual reboot ? ? ?
Schedule Reboot ? ? ?
Reboot Information logging ? ? ?
network diagnostics Ping ? ? ?
IPv6 Ping ? ? ?
Trace route ? ? ?
mirror Port mirror ? ? ?
Flow mirror ? ? ?
Remote mirror ? ? ?
Multi-destination mirror(m:n) ? ? ?
Use CPU as mirror source ? ? ?
Use CPU as mirror destination and analyze packet ? ? ?
ERSPAN ? ? ?
CPU statistics To CPU/From CPU packets statistics ? ? ?
L2 Ping layer2 network connectivity detection – L2Ping (MAC Ping/Trace) ? ? ?
UDLD UDLD(Unidirectional Link Detection) ? ? ?
unidirectional unidirectional forwarding of the fiber ? ? ?
Loop back port loop back ? ? ?
hardware loop back(internal/external) ? ? ?
System time Time configuration ? ? ?
Timezone ? ? ?
Software System software upgrate Update via TFTP ? ? ?
upgrate Uboot upgrate Uboot upgrate ? ? ?

软件许可证

事项 描述
许可证 MS，全三层软件许可证。。预装置
许可证 MA，城域网软件许可证。。
许可证 ST，堆叠软件许可证。。

下载

S5000系列互换机规格书_V1.4

HOS 软件职能列表_CN_V2.4

VastLakes平台机能规格表_CN_V3.1

有关产品
